6-Roll Dry Film Forming and Laminating Machine

6-Roll Dry Film Forming and Laminating Machine

Name: 6-Roll Dry Film Forming and Laminating Machine
Brand: Shenzhen Tsingyan Electronic Technology Co., Ltd.

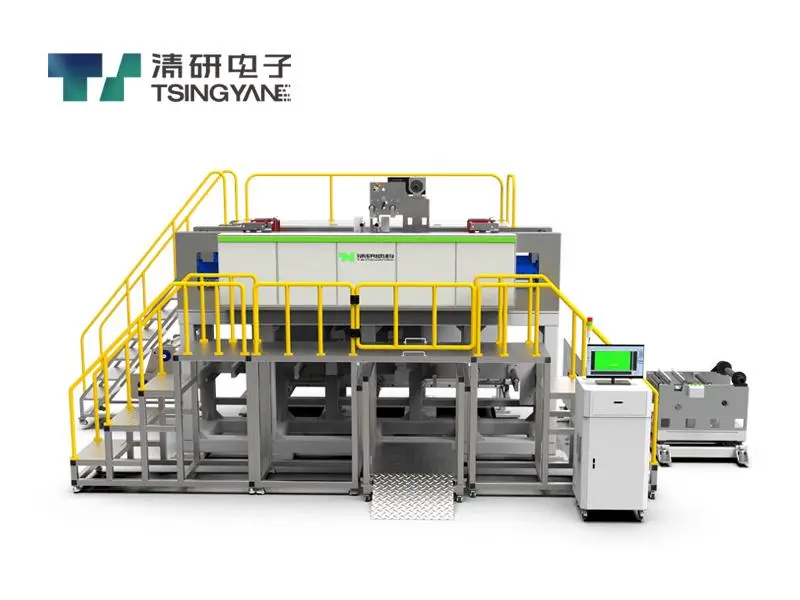

The 6-roll dry lamination machine is a medium-scale production device designed for efficient dry electrode manufacturing. Compared to the five-roll machine, this equipment features a composite function that allows simultaneous film formation and coating, significantly increasing production efficiency. Its advanced six-roll design ensures uniform material distribution and excellent film quality, making it suitable for medium-sized electrode production lines. The 6-roll film laminating machine offers greater production flexibility and material utilization for enterprises, making it an ideal choice for achieving mass production.

Buy 6-Roll Dry Lamination Machine

Parameters of 6-Roll Dry Film Forming and Laminating Machine

Film Laminating Machine Basic Technical Parameters

No.	Item	Technical parameters	Remarks
1.	Steel Roller Specifications	Φ200×400mm (roll surface diameter×roll surface width)
2.	Effective width	300mm
3.	Weight	Main machine about 5T, total weight about 7T
4.	Equipment speed	Design speed 15m/min, production speed 1-10m/min
5.	Roll runout	≤±2μm
6.	Adjustment accuracy of roll gap	Adjustment precision of roll gap ≤1μm
7.	Roll alignment	≤±1mm
8.	Machine appearance	International warm gray 1C (eventually made according to the uniform color plate provided by Party A)
9.	Roll temperature	Running temperature 25°- 150	electrical heating
10.	Temperature uniformity	±2°

Film Laminating Machine Product Output Parameters

No.	Item	Technical parameters	Remarks
1.	Film Thickness	60-200μm	Depending on the raw material process
2.	Laminating wafer winding	Maximum roll diameter:300mm	3-inch air rise shaft
3.	Lamination thickness uniformity	≤±2%	One side lamination

Advantages of 6-Roll Dry Film Laminating Machine

Six-roll Film-forming and Lamination Integrated Machine:

1. Efficient Production of Multi-layer Lamination

Film laminating machine has more lamination layers, which can improve production efficiency, and is widely used in the packaging industry with applications like BOPP lamination machine processes for enhanced durability and finish.

2. Whole-process Intelligent Control

Film laminating machine has a high degree of automation and intelligent control of temperature and pressure, simplifying production operations and reducing labor costs in dry laminating machine setups.

3. Wide Range of Application Scenarios

Film laminating machine is highly applicable, can laminate different materials such as PET PVC film, meets the needs of various industries, and makes products more innovative.

Application of 6-Roll Dry Film Forming and Laminating Machine

New Energy Battery Production

Used for single-side laminating of electrode sheets in various new energy batteries (such as lithium-ion batteries, lithium polymer batteries, etc.), ensuring tight and uniform lamination of electrode materials and current collectors, improving the electrochemical performance and overall quality of the battery. Meeting the needs of large-scale battery production, through efficient and stable laminating roll machine processes, ensuring the consistency and reliability of electrode sheets, and providing high-quality raw material processing solutions for the new energy battery industry.

Electronic Materials Manufacturing

Applicable to the production of electrode materials for high-performance thin-film capacitors used in electronic devices, precisely controlling the lamination thickness and uniformity to increase the capacitance and stability of the capacitor. Playing an important role in the manufacturing of flexible electronic materials, enabling precise single-side lamination of different functional layers with a flex lamination machine to meet the requirements of flexibility and electrical performance of flexible electronic devices, promoting the development of flexible electronics technology.

Scientific Research and Innovative Applications

Providing an experimental platform for scientific research institutions to study new energy storage materials and electrode structures, facilitating the exploration of more efficient energy storage and conversion mechanisms, and promoting cutting-edge innovation in battery technology. Used in the research and development process of emerging energy technologies (such as sodium-ion batteries, solid-state batteries, etc.) to prepare experimental sample electrode sheets with a big size lamination machine, accelerating the process of transforming new technologies from the laboratory to industrialization and promoting the diversified development of the new energy field.
